CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten

Brand Name : RIGOAL

Model Number : m12 to rj45 cable

Certification : CE，ROHS，ISO9001，REACH

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Operating Temperature : -25°C~85°C

Connector locking system : Solder/Pcb/Wire

Contact plating : Au(gold plating)

Rated voltage : 30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin

Degree of protection : IP67/IP68

Contact resistance : ≤10mΩ

Material of connector : CuZn,TPU

Contact Now

A B D X Code 3 4 5 8 12 Pin Panel Mount With Wire Terminal Fasten Ip68 M12 Series Connector

Product Paramenters
Place of Origin
China
Guangdong
Brand
Rigoal
Pin
3 4 5 6 8 12 17 pin

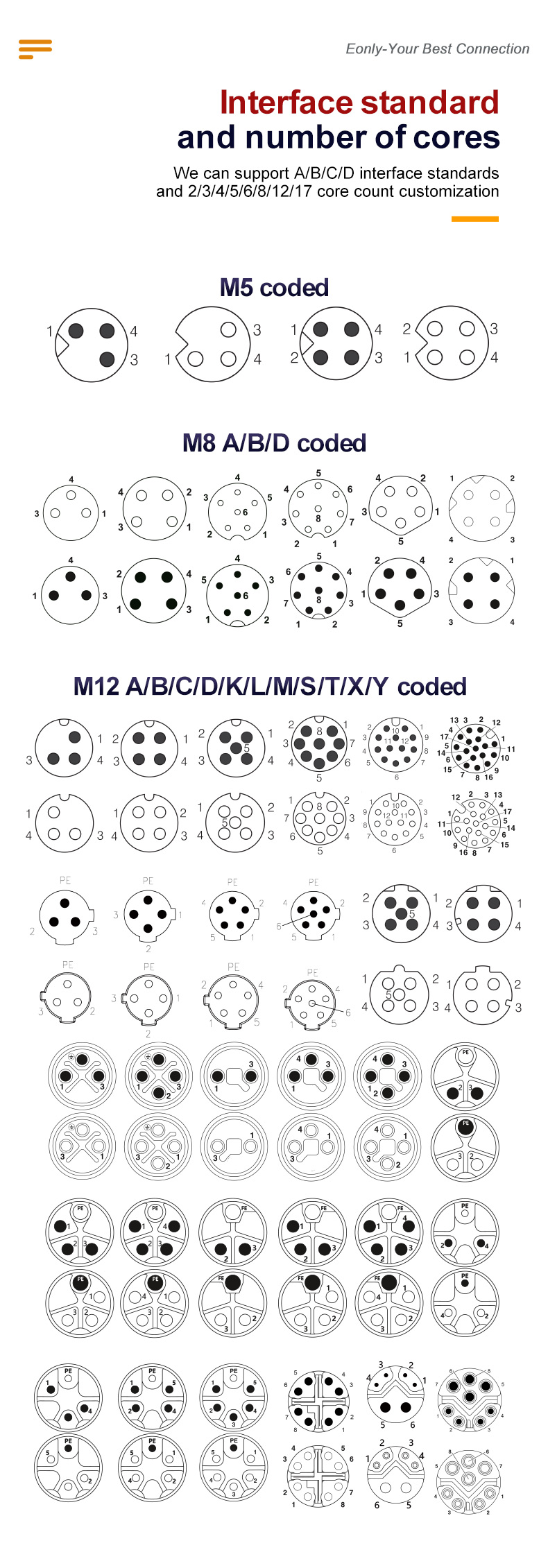

Code
A B D code
Gender
Male/Female
Type
panel mount/Assembly/cable
Rated current
1A for 12 pin/2A for 8 pin/4A for 3 4 5 17 pin
Rated voltage
30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin
Operating Temperature
-25°C~85°C
Degree of protection
IP67/IP68
Connector locking system
Solder/Screw/Pcb/Wire
Mechanical operation
>500 mating cycles
Contact resistance
≤10mΩ
Material of connector
CuZn,PA,TPU
Contact plating
Au(gold plating)
Material of housing
Brass/Zinc diecasting nickel plated
Custom
Acceptable

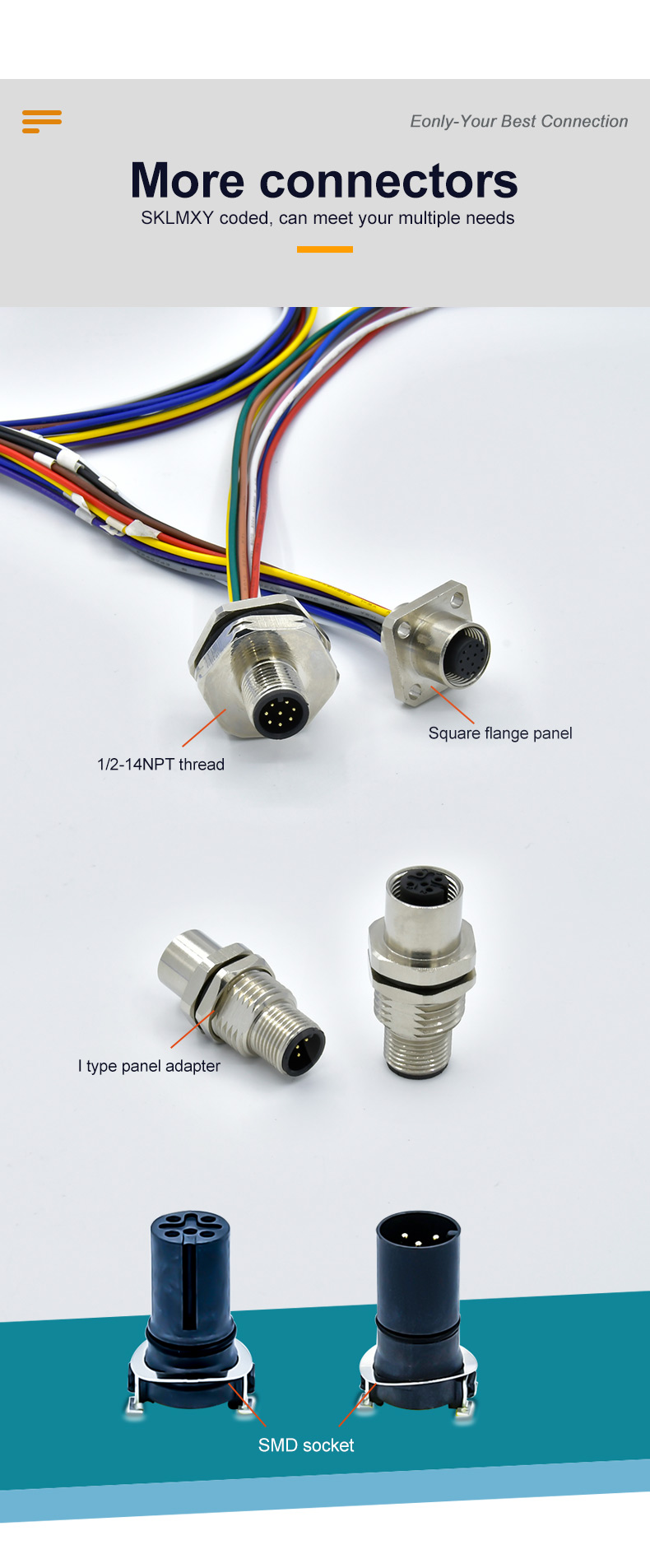

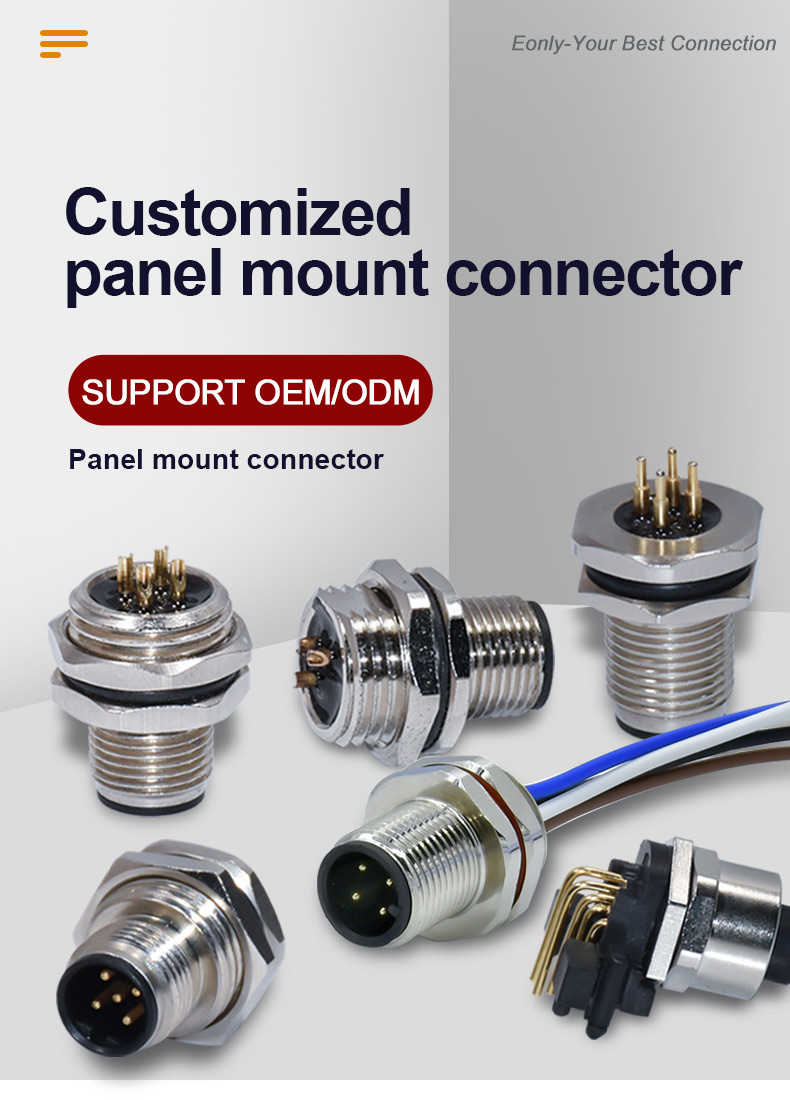

Product introduction
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
Product packaging
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
1.Each piece in one PE bag, then put in a small carton 2.OEM package is avaiable 3.According to customer requirement
Transportation
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
We can according to customer request choose different transport way,which more converence ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
Customer feedback
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
Certifications
CuZn TPU M12 Panel Mount Connector IP68 M12 Series Connector With Wire Terminal Fasten
FAQ
1. who are we? We are based in Guangdong, China, start from 2020,sell to Northern Europe(18.00%),Central America(16.00%),North America(13.00%),Western Europe(12.00%),Southern Europe(12.00%),South America(10.00%),Eastern Asia(5.00%),Africa(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Mid East(2.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? waterproof connector,waterproof connector cable,power waterproof connector,LED waterproof connector,RJ45 waterproof connector 4. why should you buy from us not from other suppliers? Rigoal has more than 10 years of manufacturing and trading experience,which is specialized in producing various power waterproof connectors such as RJ45, K20 series,USB, D-SUB,and M12 series. Our products have obtained certifications of ISo9001,CE and IP68. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
